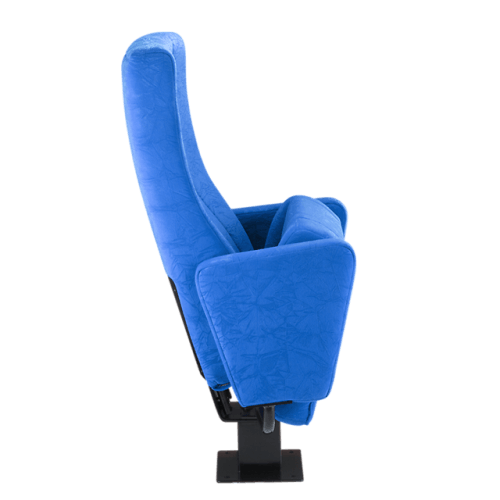

Harrison

Cinema armchair Harrison. The price of the seats is calculated depending on a specific project. Please send to us the project of Your auditorium and we will give You the best offer.

Overview

Ergonomics and design:

This blend makes the Harrison armchair a star among cinema armchairs. The ergonomic seat and backrest provide comfort to cinema lovers. The look of the armchair, refined to  the smallest detail, expresses respect for art.

Diversity:

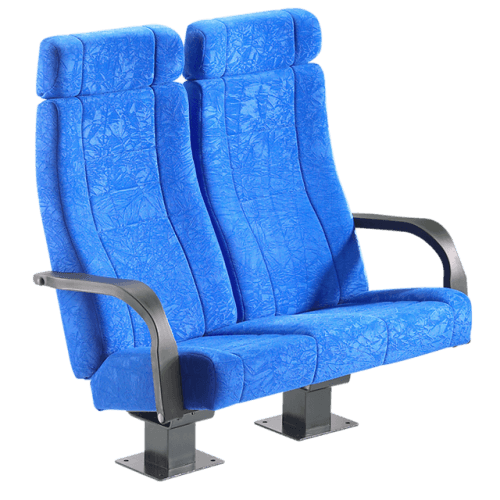

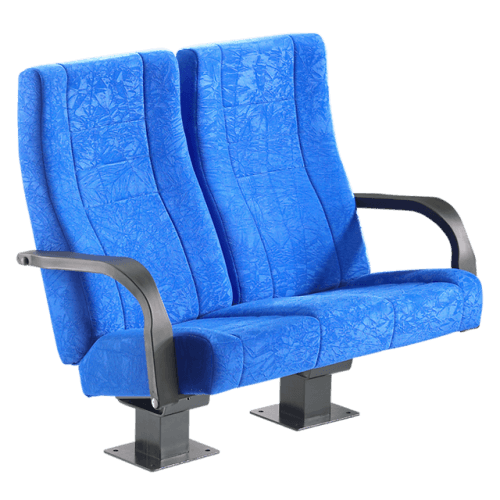

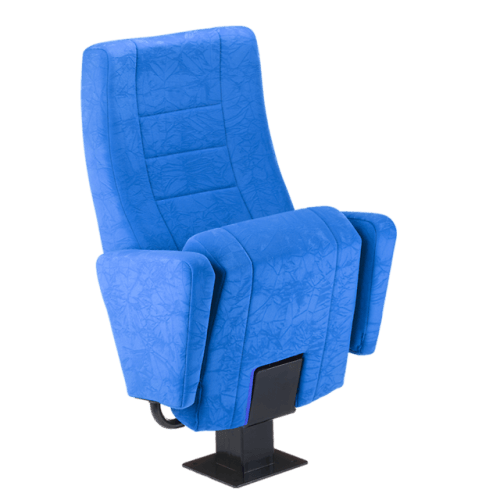

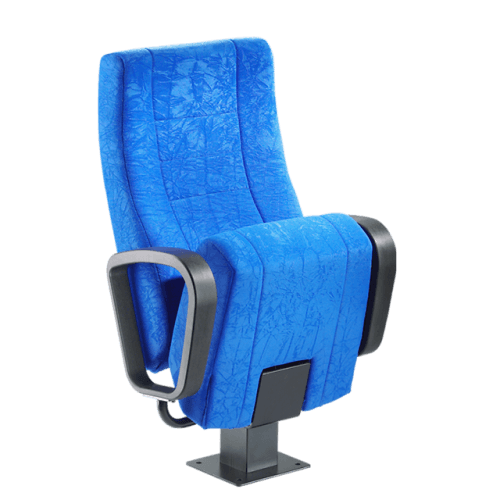

Harrison is available as a fixed seat or folding seat model. The first one will work well for cinema halls with spacious aisles between rows and for small, intimate cinemas. The second one occupies less space and makes passing through easier. It is a good solution for multi-screen cinemas. Harrison is also available as a twoseater model. The two seater is the perfect model for cinema going couples.

Variety of options:

Thanks to the many types of seat and row numbering systems the Harrison armchair, as well as the entire cinema hall can be designed in line with customer’s wishes. Accessories such as headrest, cup holder, service table and shelf between seats help the audience to arrange the space around them and raise the comfort of film experience.

Features, functions and materials

• Structure: central leg with a welded on seat and backrest bracket and a maintenance-free seat swivel mechanism; armrest bracket is made of round tube and is fixed individually with screws, with a base welded to the bottom with 4 holes for fixing to floor with screws.
• Steel components: powder coated in black.
• Seat made from wood-based board, lined with waterfoam, ergonomically profiled and fully upholstered with fabric. The upholstery is backstitched on foam. Backstitch pattern: ladder stitching – 1 field. Available models: Harrison fixed, Harrison folding.
• Backrest is made from ergonomically curved laminated beech wood profile with PUR soft foam profile, is anatomically shaped, fully upholstered with fabric and the upholstery is backstitched on foam. Backstitch pattern: ladder stitching – 2 fields.
• Armchair armrests: fully upholstered, have a solid wood core covered with foam and standard upholstery.
• Armchair weight: Harrison fixed – approx. 25 kg, Harrison folding – approx. 24 kg.

Optional Accessories

Row numbering:

• round electronic light points for seat rows, fitted with Sofitte lamps;

• black round plate made from Astralon (Ø 70 mm) with white engraving, font size approx. 30 mm, with or without a console of black plastic;

• flocked, height 40 mm, white font (available only for upholstery fabrics).

Seat numbering:

• flocked, height 20 or 30 mm, white font;

;

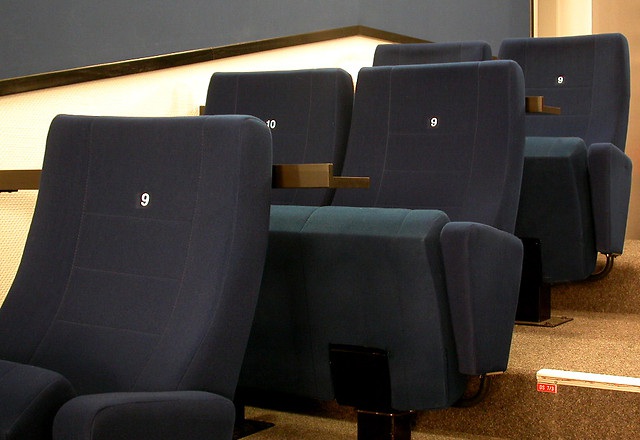

• astralon plate (Ø 30 mm) with white font against black background, fixed on the back side of backrest or in integrated armchair armrest. Harrison folding model: can also be fixed beneath the seat;

• astralon plate, round (Ø 25 mm), font size approx. 10 mm, comes as a black plate with white engraving and an arrow.

Overlay at end of row: fully upholstered with fabric or leather installed onto integrated chair armrest as a terminal cover. Can be mounted at a later time.

Cup holder:

• Harrison fixed: holder made from fibreglass reinforced polyamide mounted with bolts at the front of either upholstered or integrated chair armrest, diameter approx. 110 mm;

• Harrison folding: holder mounted on either upholstered or integrated armchair armrest, mounted on the back or, for the 1st row, at the front, made from round tube (diameter approx. 80 mm) of coated polyethylene;

• Harrison fixed: holder made from glass-fibre reinforced polyamide, bolted at the front to a fully upholstered armrest, diameter approx. 110 mm.

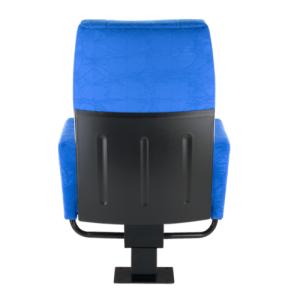

Backrest shell:

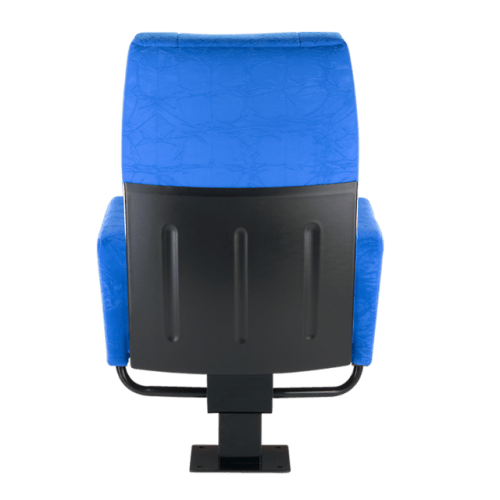

• powder-coated metal shell in deep black (RAL 9005) fixed with bolts to the back side of the armchair, applied on the lower 1/3 of backrest height;

• plastic shell fixed with bolts to the back side of the chair, applied on the 2/3 or full backrest height.

Auxiliary table: on the back of the armchair.

Shelf between armchairs: made from solid or laminated wood, stained and double-coated with colourless polyurethane lacquer. Mounted to armchair armrest with angle brackets.

Headrest: made from laminated beech wood lined with waterfoam, anatomically profiled, fully upholstered with fabric, upholstery fabric backstitched on foam, mounted with adapter plate to chair back structure. Can be mounted at a later time.

Approvals and certificates

• Fire class op upholstery fabrics

Fire class for ignitability as per standards: DIN EN 1021 Parts 1+2 (cigarette test and match test) DIN 4102 M1/B1 (flash-resistant).

• Quality class

Quality certificate according to the requirements of DIN EN ISO 9001 and DIN EN ISO 14001.

• GS-Certificate

GS Certificate in accordance with the requirements of DIN EN 12727 issued by TÜV SÜD.

Fixing options

• Straight rows of unlimited length
• Arranged in an arc
• Free-standing single or multi-seat sets
• Flat floor
• Sloping floor
• Stepped floor

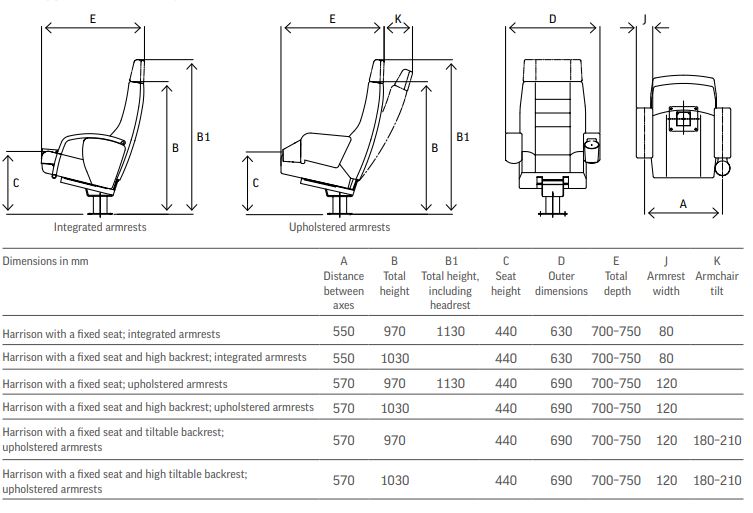

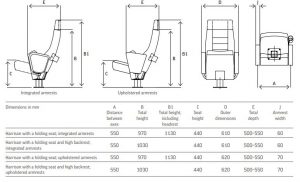

Dimensions of the Harrison fixed model:

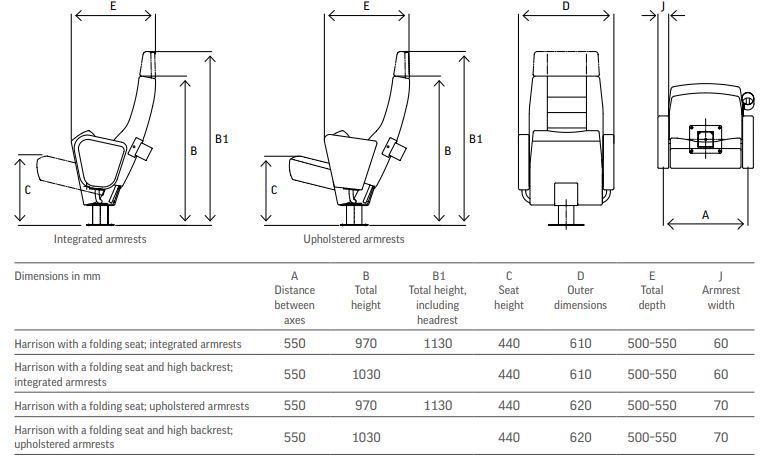

Dimensions of the Harrison folding model:
